Product Advantages

HONGJUN Open Width Single Jersey Circular Knitting Machines

 Function and advantages

1.Oil-Bathed Structure:

2.Double Push Sinker Cam:

3.Advanced Computer Control System

4. Low Power Consumption:

5.Central Stitch Adjustment: for easy operation and change the gsm or density of the fabric quickly.

6. Ball bearing system to reduce the noise of the machine during production

7. Long Machine Life:.at least 20 years life time under proper and regular maintenance

Machine Features

Open Width Single Jersey circular knitting machine

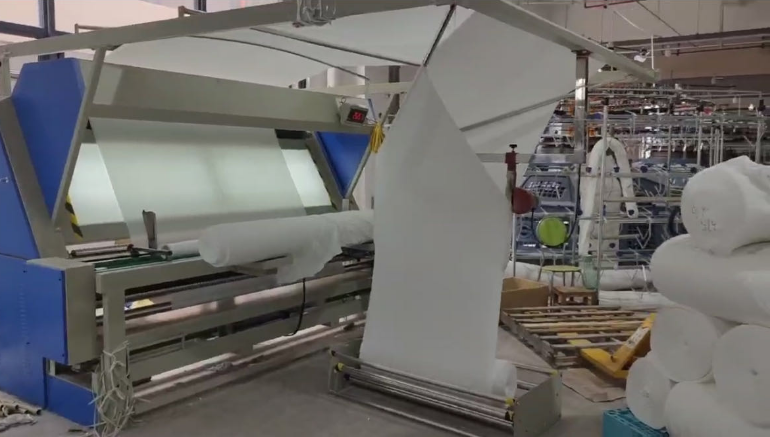

The machine to open the tubular knitting fabric width during knitting, so you do not have to open the fabric width again with a special machines like below.




It will save your labor cost, and improve the fabric quality, especially for high elastic fabrics, because it do not have creases compare to a tubular fabrics.

Technical Data

HONGJUN Open Width Single Jersey Circular knitting Machine Specification

Model
Diameter
Gauge
Feeders
HJ-DMKF
26"-44"
16G-36G
3F/4F/6F/INCH

PRODUCT DISPLAY

FUJIAN HONGJUN PRECISION MACHINERY CO,.LTD

FUJIAN HONGJUN PRECISION MACHINERY CO.,LTD
Open Width Single Jersey Knitting Machine32〞96F(28G) Accessory list
SER NAME SPECIFICATION UNIT Q'TY SUPPLIER REMARK
1 CONTROLLER PANEL   SET 1 XILIN
MOTOR 5.5KW   SET 1 TECO
INVERTER 5.5KW   SET 1 DELTA
OILER SPRAYING TYPE SET 1 WHEELER
TOP FAN   SET 1 HONGJUN
MIDDLE FAN   SET 1 HONGJUN
2 CAM BOX 32″96F SET 1 HONGJUN CENTRAL STITCH
CYLINDER 32″*28G*2820T SET 1 HONGJUN
SINKER CAMS   SET 1 HONGJUN
CYLINDER CAM Cam PCS 384 HONGJUN
YARN CARRIER   PCS 97 HONGJUN SPARE 1PCS
NEEDLE 141.41 PCS 2920 GROZ BECKERT SPARE 100 PCS
SINKER 0.3X0.15 PCS 2920 GROZ BECKERT SPARE 100 PCS
LYCRA FEEDER lycra feeder PCS 24 SMG
Cable METER 12
POSITIVE YARN FEEDER NEO PCS 97 MEMMINGER IRO SPARE 1 PCS
Cable METER 18
MACHINE FRAME 32″ SET 1 HONGJUN
Main Driving  Bearing SET 1 HONGJUN
Main Gear SET 1 HONGJUN
Main  Plate SET 1 HONGJUN
Creel with tubes SET 1 FULONG
Top Frame SET 1 HONGJUN
Single Quality Wheel 210 SET 1 HONGJUN
Double quality  Wheel 210 SET 2 HONGJUN
Single Tensioner SET 1 HONGJUN
Double Tensioner SET 2 HONGJUN
Yarn delivery gear SET 1 HONGJUN
METAL PLATE 32″ SET 1 HONGJUN
TAKE DOWN DEVICE Open Width roller SET 1 YUNG LEADER
Fabric Spreader 850-1250 SET 1
3 TIMING BELT 960*50*8M PCS 1 SHUANGYANXIN
TRIANGLE BELT 8420B PCS 3
TEETH BELT 9000 PCS 1 MEMMINGER Germany
TEETH BELT 9200 PCS 2
TEETH BELT 11200 PCS 1
TOOL BOX   SET 1 HONGJUN

COMPANY PROFILE

FUJIAN HONGJUN PRECISION MACHINERY CO,.LTD

FUJIAN HONGJUN PRECISION MACHINERY CO,.LTD

Knitting machinery industry originated in China, and learn from our peer in Europe, Japan and Taiwan who has one hundred years modern knitting machinery manufacturing experience. Shaoxing Hongjun Machinery under the introduction of Japan, Taiwan technology, relying on China's resources and market advantages , has created a series of knitting legend, both knitting machine and knitting fabric, all have a place in the world.With little difference in fabric manufacturing speed, quality and fabric structure. Our knitting machinery is much cheaper than our competitors in Europe and Taiwan.

“Quick Change” and “Universal Usage” Features of the machine allow customer to quickly change the knitting items in the demand of orders.

The company has a modern production plant and advanced production equipment, with expereniced industrial workers. The key components, most of the parts are from Taiwan. Our Technical Design Team comes from Taiwan make Hong Jun machinery reaching domestic advanced level in the industry. Honest, Professional, innovative" is the business philosophy of Hongjun. "Quality is life, customer is supreme" is the service concept which Hong Jun machinery always adhere. In order to improve the production quality and service life of the machine, the company in different times to do technical training to customers.
